Thermoforming Vacuum Packaging Machine

DZL-R Series

Thermoforming Vacuum Packaging Machine is the equipment for products’ high-speed vacuum packaging in flexible film. It stretches the sheet into a bottom package after heating, then filling the product, vacuums and seals the bottom package with a top cover. Finally, it will output every individual packs after cutting.

Thermoforming Packaging Machines

Thermoforming packaging machines are a popular way to produce custom-made, one-of-a-kind packaging. They heat and pressurize the plastic sheet into a variety of shapes, often for use in food and beverage products. The machines are relatively easy to operate, with most requiring only a few steps to produce the desired packaging. This flexibility is one of the machine’s major advantages, as it allows for quick and easy production of customized packaging solutions.

Thermoforming MAP (multi-layer packaging) is a thermoplastic manufacturing process that creates a variety of rigid and flexible packaging products from a single sheet of material. This machine is used to create small to medium size containers from a variety of plastic materials including polypropylene, polyethylene, and polystyrene. The machine uses heat and pressure to form the material into desired shapes.

Thermoforming machine is a packaging machine that extrudes the plastic sheet into desired shapes using heat and pressure. Thermoforming machines come in a variety of sizes and can be used to make a variety of different packaging types, including blister packs, cartons, bottles, boxes, and cases. By creating custom packaging for each customer, businesses can ensure that their products are delivered to consumers in the most appropriate form.

Download as PDF Send email to us

Feature

Application

Optional

Equipment configuration

Specifications

Product Tags

Thermoforming Vacuum Packaging Machine

Security
Safety is our top concern in machine design. To ensure max safety for the operators, we have installed multiply sensors in many parts of the machine, including protective covers. If the operator opens the protective covers, the machine will be sensed to stop running immediately.

High-efficiency
High efficiency enables us to make full use of the packaging material and reduce cost & waste. With high stability and reliability, our equipment can reduce downtime, thus the high production capacity and uniform packaging result can be ensured.

Simple operation
Simple operation is our key feature as a highly automated packaging equipping. In terms of operation, we adopt PLC modular system control, which can be acquired through short-time learning. Besides machine control, mold replacement and daily maintenance can also be mastered easily. We’re keeping on technology innovation to make machine operation and maintenance as easy as possible.

Flexible use
To fit into various products, our excellent packaging design can custom the package in shape and volume. It grants customers better flexibility and higher utilization in the application. The packaging shape can be customized, such as round, rectangular and other shapes.With the most advanced technology of thermoforming system, packing depth can reach 160mm (max).

Special structure design can also be customized, such as hook hole, easy tear corner, etc.

Previous: Thermoforming Modified Atmosphere Packaging Machine（MAP）

Next: Poultry Thermoforming MAP Packaging Machine

UTIENPACK provides a wide range of packaging technologies and packaging types. This thermoform vacuum packaging machine in flexible film extracts natural air in the packaging to extend the shelf life of the product.

Flexible films for products packaged under vacuum often are a cost-effective solution. Such a pack produced with thermoforming technology provides optimal protection and maximum shelf life for its contents. Depending on the films applied, it can be used for post-pasteurised products too.

Advantages of Vacuum Packaging

Cost-effective
Optimal protection
Maximum shelf-life

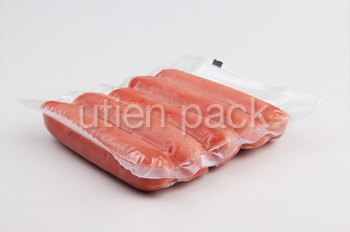

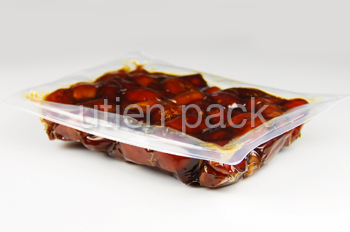

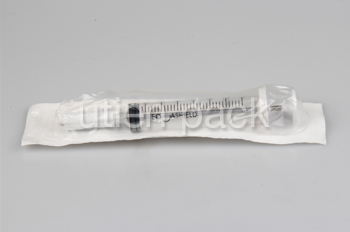

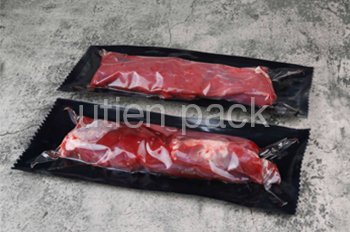

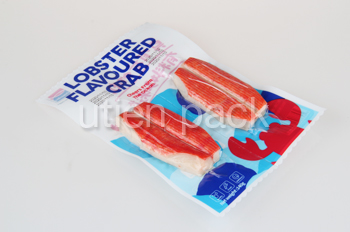

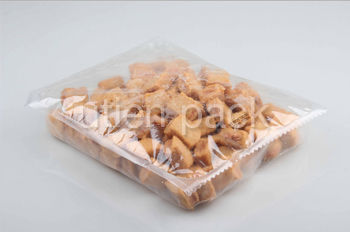

Perfect for these sectors: Bakery, Convenience, Dairy, Meat, Poultry, Seafood, Ready Meals, Pet Food, Produce

One or more of the following third-party accessories can be combined into our packaging machine to create a more complete automated packaging production line.

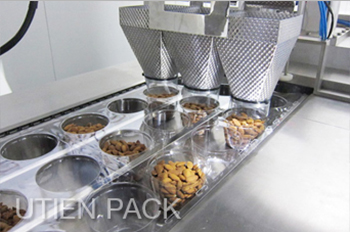

Multi-head weighing system
Ultraviolet sterilization system
Metal Detector

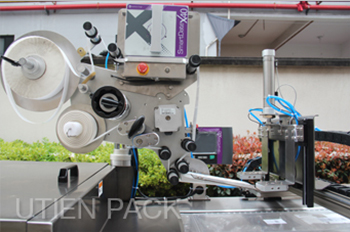

Online automatic labeling
Conveyor system
Inkjet printing or thermal transfer system
Automatic screening system

1. Vacuum pump of German Busch, with reliable and stable quality .
2. 304 stainless steel framework, accommodating to food hygiene standard.
3. The PLC control system, making the operation more simple and convenient.
4. Pneumatic components of Japan’s SMC, with accurate positioning and low failure rate.
5. Electrical components of French Schneider, ensuring stable operation
6. The mold of high-quality aluminum alloy, corrosion-resistant, high-temperature resistant, and oxidation-resistant.

The regular model are DZL-320R, DZL-420R, DZL-520R (320, 420, 520 means the width of the bottom forming film as 320mm, 420mm, and 520mm). Smaller and bigger size thermoforming vacuum packaging machines are available on request.

Model	DZL-R Series
Speed(cycles/min)	7-9
Packaging option	Flexile film,vacuum&gas flush
Pack types	Rectangular and round,Basic formats and freely definable formats…
Film widths(mm)	320,420,520
Special widths(mm)	380,440,460,560
Maximum forming depth(mm)	160
Advance Length(mm)	＜600
Die changing system	Drawer system,manual
Power consumption(kW)	13.5
Machine dimensions(mm)	5500×1110×1900，Customizable
