Table Type Vacuum Packing Machine

DZ-400Z

This machine is a table type vacuum packaging machine with special vacuum system and exhaust device. The whole machine is compact and can be placed on the desktop for vacuum packaging.


Feature

Application

Equipment configuration

Specifications

Product Tags

1. It’s easy to operate the machine with PLC touch screen.
2. The shell of packing machine is made of stainless steel, suitable for various occasions and materials;
3. The packaging process is clear and the operation is convenient.
4. The vacuum system adopts imported vacuum generator, with the advantages of no noise and no pollution, it can be used in a clean room.


  • Previous:
  • Next:

  • The vacuum system of this machine uses a vacuum generator, so it can be used in a clean, dust-free and aseptic workshop in electronics, medicine and other industries.

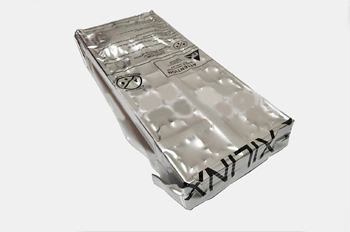

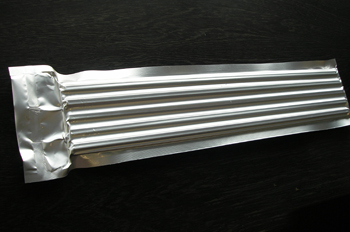

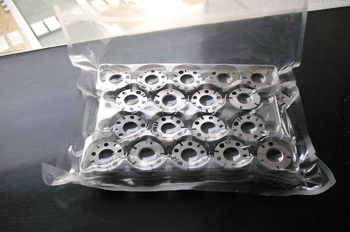

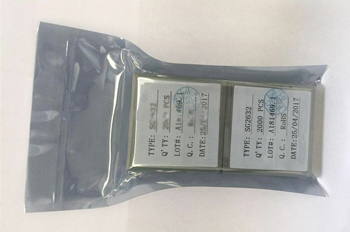

    vacuum packaging,1Battery packagingHardware vacuum packaging (1-1)Hardware vacuum packaging (2-1)

    • The whole machine is made of stainless steel, in compliance with food hygiene regulations.

    • The equipment adopts PLC control system, which is easy to operate and labor-saving.

    • The machine is assembled with high-quality Japanese SMC pneumatic components to ensure accurate positioning and minimum failure conditions.

    • French Schneider Electric components guarantee long-term operation, increasing the reliability and durability of the equipment.

    Machine Model DZ-400Z
    Voltage (V/Hz) 220/50
    Power (kW) 0.6
    Dimensions (mm) 680×350×280
    Weight (kg) 22
    Sealing Length (mm) 400
    Sealing Width (mm) 8
    Maximum Vacuum (-0.1MPa) ≤-0.8
    Table Size (mm) 400×250
