Thermoforming is a widely used manufacturing process that involves heating a plastic sheet until it becomes pliable and then using a thermoforming machine to shape it into the desired shape. This technology is common in various industries including packaging, automotive and consumer goods. Understanding the basics of thermoforming can help businesses and individuals make informed decisions about their production processes.
What is thermoforming?
Essentially, thermoforming is a method of shaping plastic materials. The process starts with a flat sheet of thermoplastic, which is heated to a specific temperature to make it soft and malleable. Once the material reaches the desired temperature, it is placed on the mold. Vacuum or pressure is then applied to pull the sheet into the mold, giving it the shape of the mold cavity. After cooling, remove the molded part and trim away any excess material.

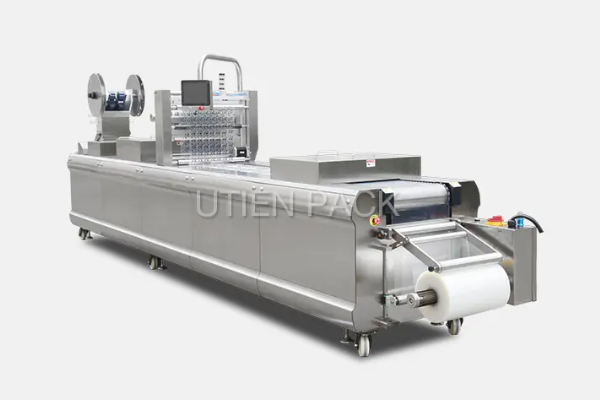

Thermoforming machine
Thermoforming machines are key equipment used in this process. These machines are available in a variety of configurations, including single-station and multi-station setups, depending on the complexity and volume of production required. The main components of a thermoforming machine include:
Heating element: This component heats the plastic sheet to the desired temperature. Depending on the machine design, infrared heaters or other methods can be used for heating.
Mold: The mold is the shape that the heated plastic will take. Molds can be made from a variety of materials, including aluminum and steel, and can be designed for single-use or multiple cycles.
Vacuum system: This system creates a vacuum that pulls the heated plastic sheet into the mold, ensuring a tight fit and precise shape.
Cooling system: After the plastic is molded, it needs to be cooled to maintain its shape. Cooling systems may include water cooling or air cooling methods.
Trimming station: After the part is formed and cooled, excess material is trimmed away to produce the final product.
Types of thermoforming
There are two main types of thermoforming: vacuum forming and pressure forming.
Vacuum forming: This is the most common method, using a vacuum to pull heated plastic into a mold. It is suitable for simpler shapes and is often used in packaging and disposable products.
Pressure molding: In this method, air pressure is used to push the plastic into the mold. This technology allows for more complex designs and finer details, making it ideal for applications in the automotive and medical industries.
Application of thermoforming
Thermoforming is versatile and can be used to create a variety of products. Common applications include:
Packaging: Clamshells, trays and blisters for consumer goods.
Auto parts: Interior panels, instrument panels and other components.
Medical devices: Trays and containers for medical devices.
Consumer products: Items such as containers, lids, and custom packaging.
in conclusion
Understanding the basics of thermoforming and the role of a thermoforming machine is critical for anyone involved in manufacturing or product design. The process is flexible, efficient, and cost-effective, making it a popular choice across industries. By mastering the basic concepts of thermoforming, companies can leverage the technology to increase production capabilities and effectively meet market demand. Whether you’re a manufacturer, designer, or just curious about the process, a deeper understanding of thermoforming can open up new opportunities in plastics manufacturing.
